Description
KEY SYSTEM FEATURES
- Two different construction typologies for installation in any condition.
- The sash moves with four double rollers on a double inox track.
- Provides superior sound insulation and thermal insulation with glass panes up to 35mm thick.
- Maximum dimensions (2.5m x 3.0m) or 7.5m².
- Offers top-tier sealing performance even with a 32mm track.

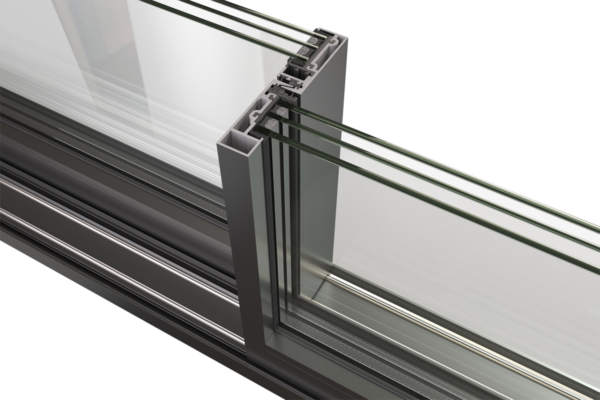

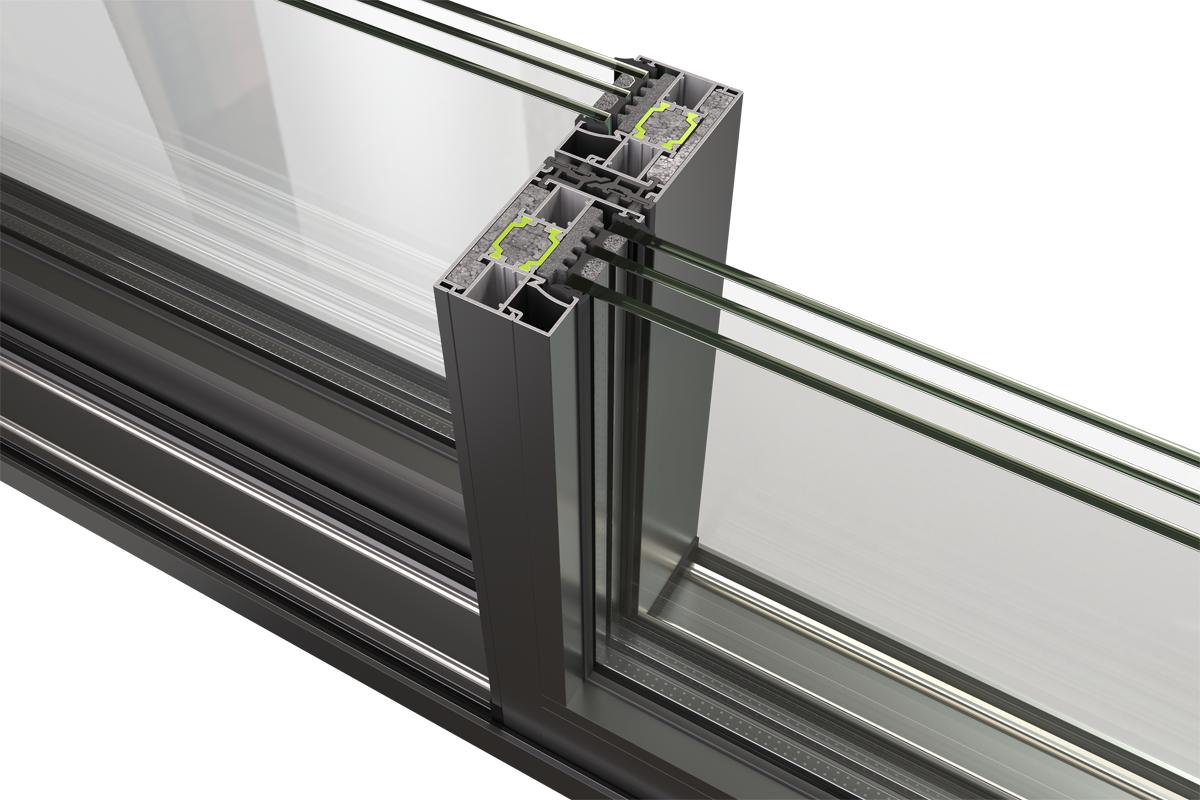

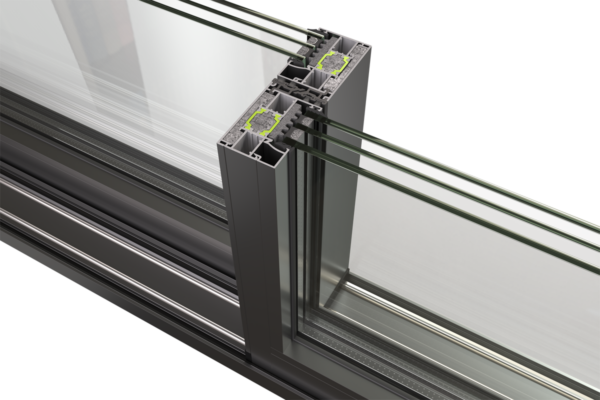

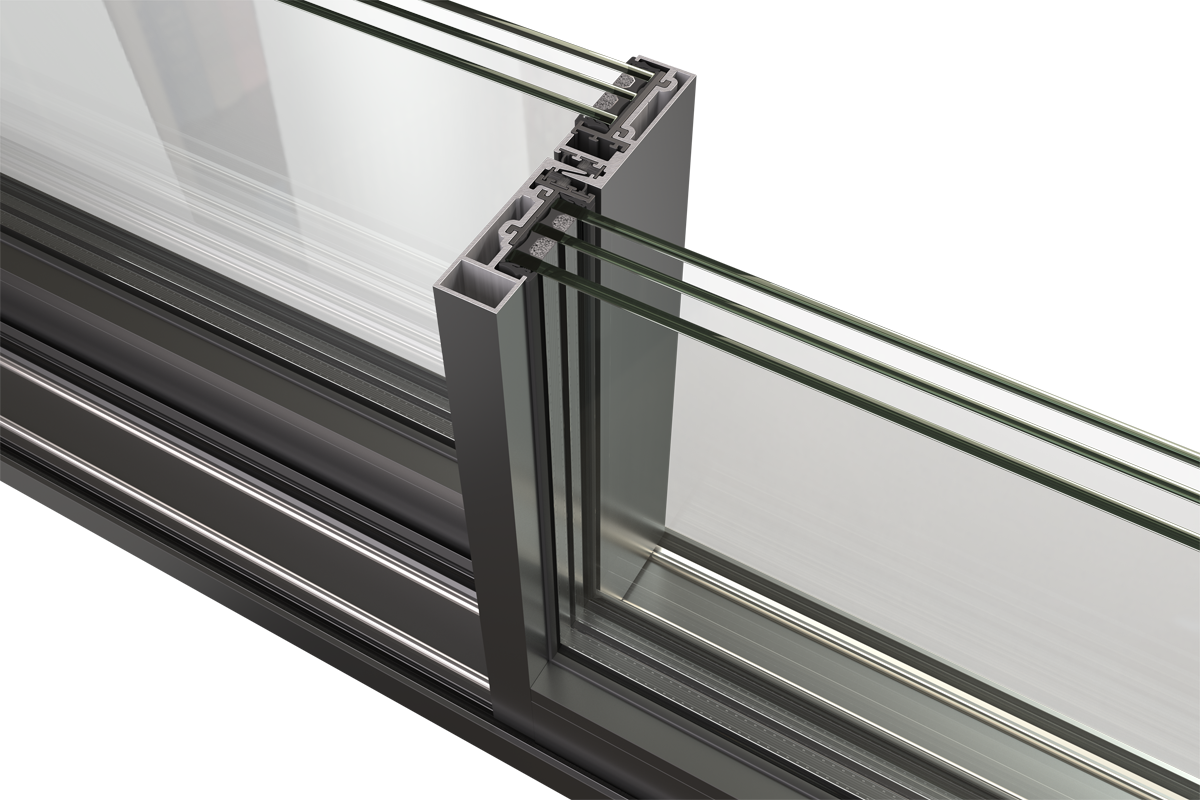

- Option for overlapping construction with a 45mm wide interlock or a slim 25mm interlock.
- 22mm polyamides are used in both the track and the sash.
- Glass sash thickness: 64mm.
- The minimum visible lower horizontal part of the sash has a height of 58mm.
- Supports double or triple glazing with a thickness of 27-35mm.
- Maximum sash weight: 350kg.
- No need for a new press tool (compatible with ESS 34 Hybrid / EOS 60 Hybrid press tools).
- No need for deburring tools (except for overlapping construction with a slim 25mm interlock, where a deburring disc is required).
SPECIFICATIONS
- Aluminum Alloy: EN AW 6060 T6
- Hardness: 12 Webster
- Minimum Coating Thickness: 75mm
- Profile Thickness:3 – 2.3mm
- Dimensional Tolerances: According to EN 12020-02
- Overlapping Track Width: 157mm
- Recessed Track Width: 115mm (Glass – Screen)
- Interlocking Profile Width: 45/25mm
- Glass Panel Frame Thickness: 64mm
- Glazing Thickness: 27-35mm
- Polyamide Width: 22mm
- Frame Thermal Transmittance (Uf): From 2.6 W/(m²K)
- Maximum Panel Dimensions (W x H): 5m x 3m
- Maximum Panel Weight: 350Kg
BUILDING TYPES

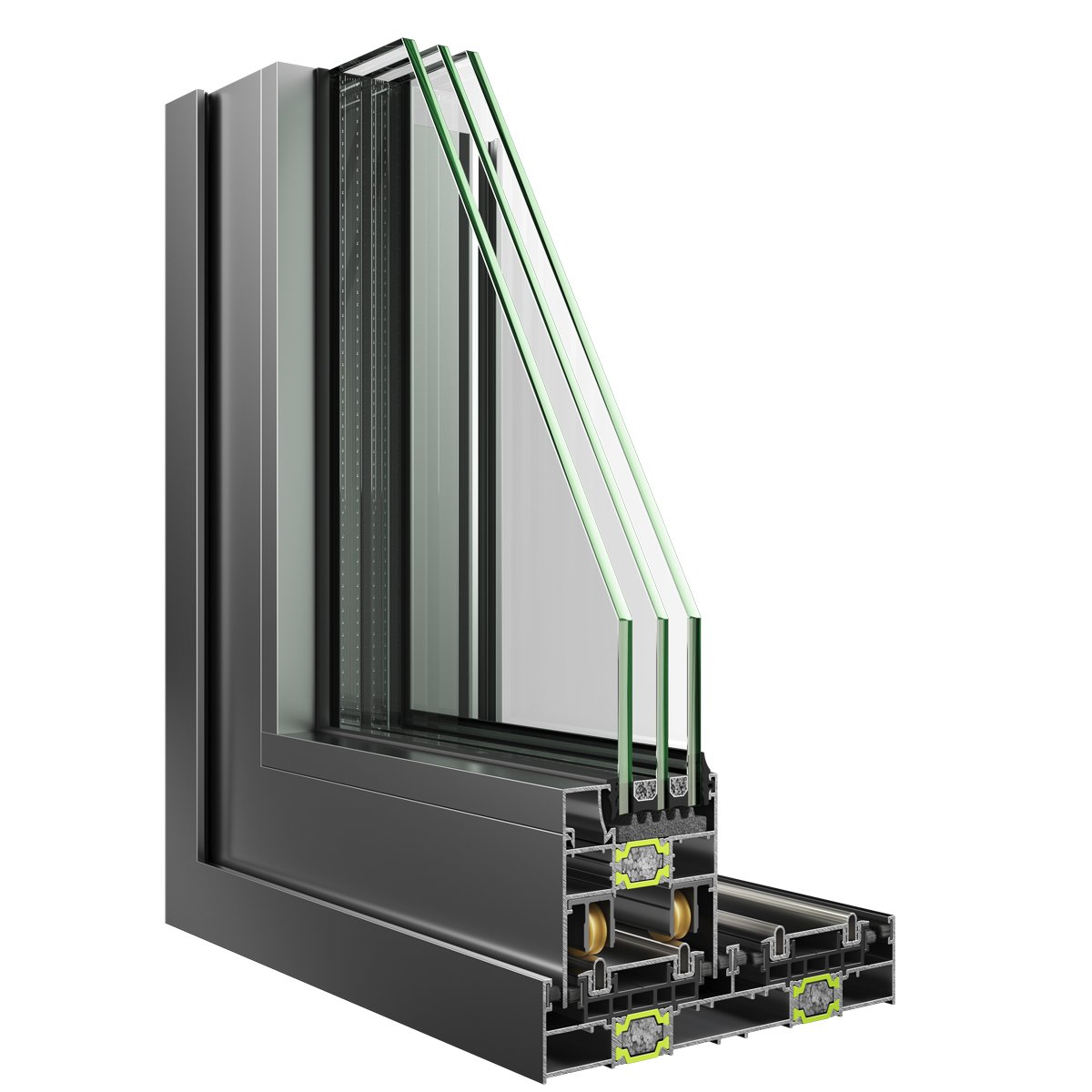

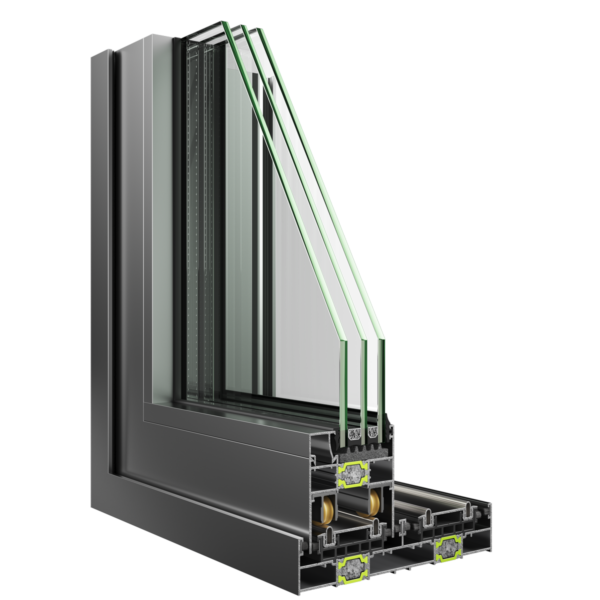

- Overlapping (Two-panel, Three-panel, Four-panel, etc.)

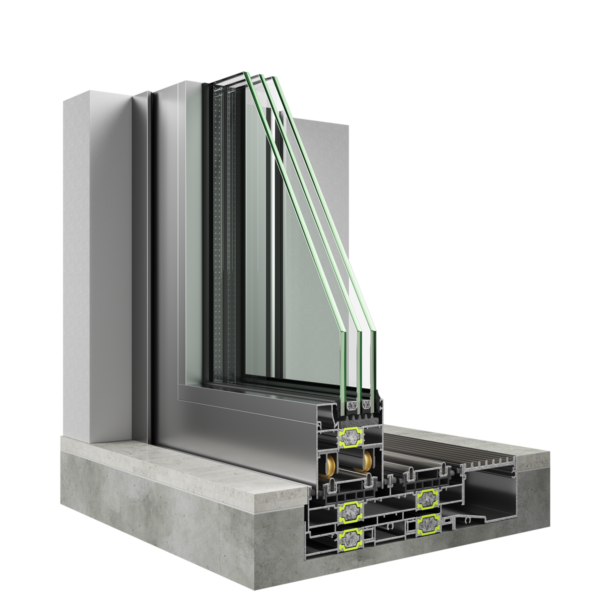

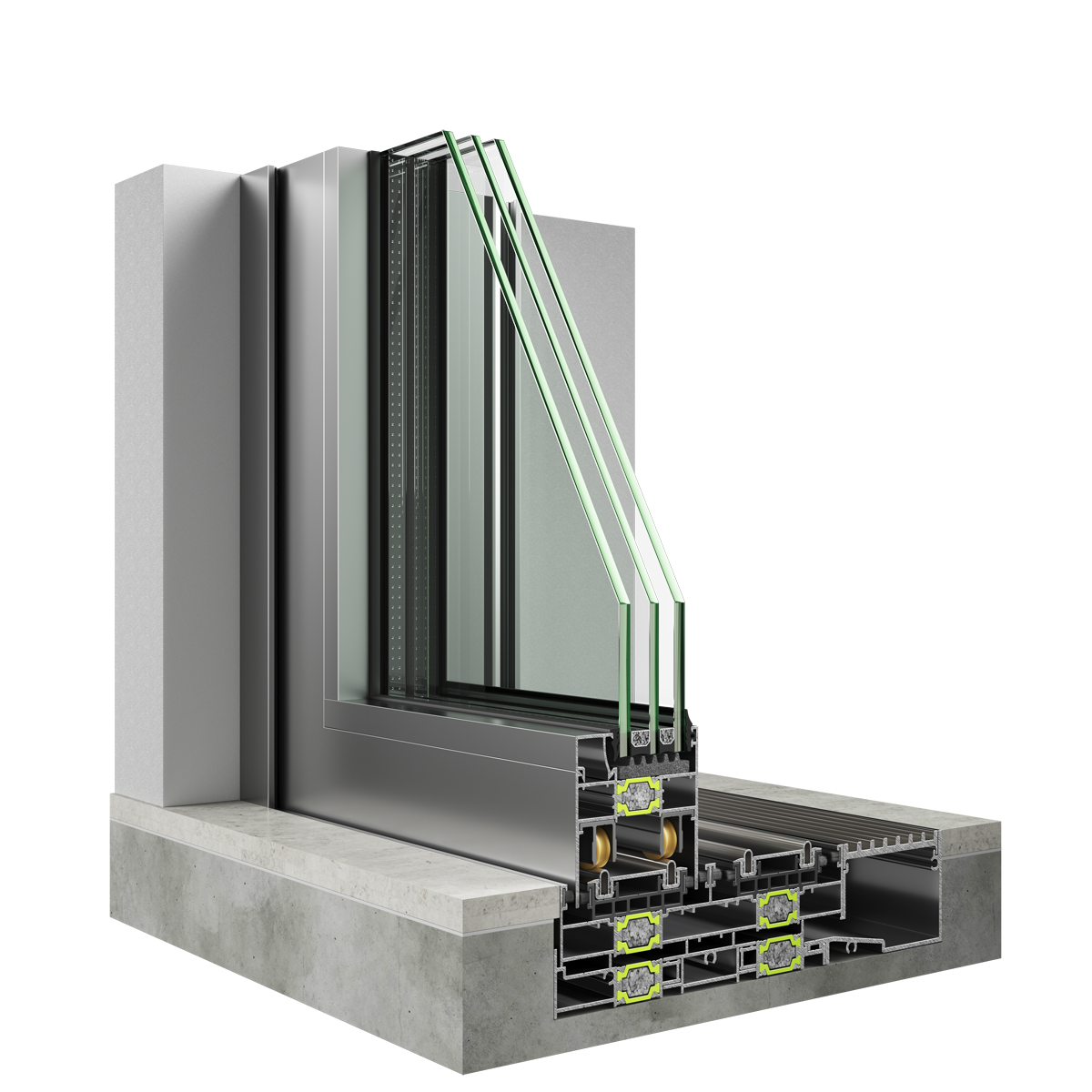

- Recessed (Single-panel, Double-panel)
- Corner Constructions
