Clip22 Plisse

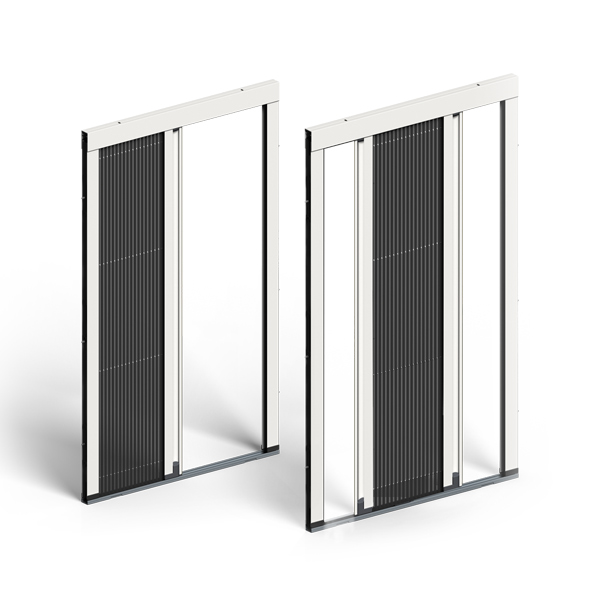

The Clip22 Plisse is produced and distributed by DOUKAS and is a horizontal movement screen with side ropes on the lower guide. It is the ideal choice for openings with limited space as it requires only 22mm to be installed. The system has a pleated 15mm Plisse cloth, which makes it ideal for large openings as it offers functionality and flexibility. The particularly low 7mm guide at the bottom makes it easy to access.

An important advantage is also the ability to provide the model in the form of a multidimensional KIT, enabling immediacy when required.

Category:

PRODUCT ENQUIRY FORM

Clip22 Plisse

clip22 plisse doukas 1

The Clip22 Plisse is produced and distributed by DOUKAS and is a horizontal movement screen with side ropes on...

Share

Description

ADVANTAGES

– Ideal choice for large openings
– Requires small mounting space (22mm)
– Silent operation
– Easy installation

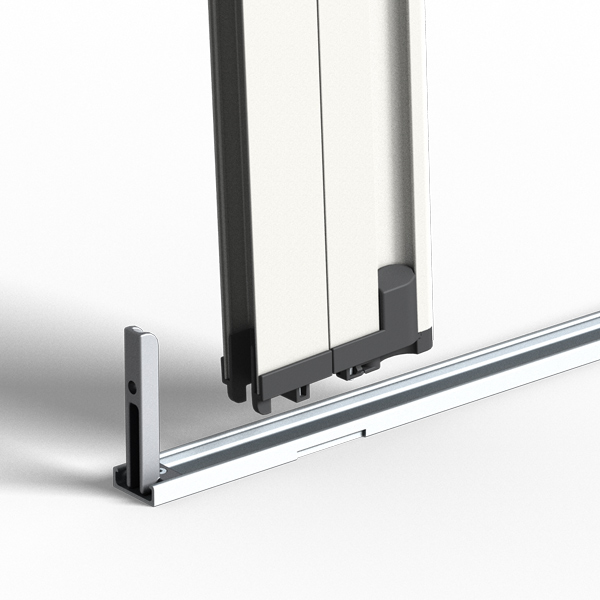

– Low 7mm aluminum guide at the bottom
– Quick installation with Bayonet system
– Magnet or brush closure
– Also available in KIT( Please see further bellow)
– CE certification

TECHNICAL SPECIFICATIONS

Type: Horizontal movement plisse screen with ropes
Typologies: Single leaf, Double leaf, Duplex Operation: Manual
Installation: Balcony doors, Windows
Closing mode: Magnet or Brush
Required space: 22mm
Maximum dimensions: Single leaf-Duplex
: W: 240cm x H: 300cm, Double leaf W: 480cm x H: 300cm
Type cloth: Pleated cloth with a width of 15mm
Cloth color: Black (default) or Grey
Profile color: Powder coating, Anodizing, Wood
imitation Certification: CE marking according to EN 13561:2014

KIT DIMENSIONS

Also available in KIT with the ability to cut at a height of up to 25cm

w  110cm x h:210cm & 235cm & 260cm
140cm x 210cm & 235cm & 260cm
160cm x 210cm & 235cm & 260cm
185cm x 210cm & 235cm & 260cm
210cm x 210cm & 235cm & 260cm
