Flower Box Glass Partition

MW40fp

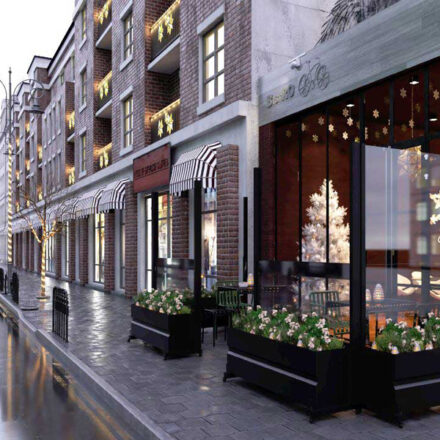

It is mainly used in catering areas as an outdoor divider (cafes, hotels, restaurants). It can be used either in cases where there is a roof, or as a simple windbreak. If we place the iron box from the outside, we use it as a planter, while if we place it on the inner side, we use it as a seat.

Category: Glass Partitions

Interest Enquiry

PRODUCT ENQUIRY FORM

Flower Box Glass Partition

MW40fp

It is mainly used in catering areas as an outdoor divider (cafes, hotels, restaurants). It can be...

Description

SYSTEM IDENTITY

Glass sliding windbreak designed to cover outdoor areas. It has a built-in pot / planter which serves to fix it – that is, it does not require fixation. The system has wheels at the bottom to facilitate its removal. Alternatively, we can use the iron box as a seat (bench), attaching a lid to the top. The system works manually: by lowering the upper glazing, the horizontal counterweight is lifted and releases a half of the opening. The dimensions of the system depend on the requirements of the installation, with a maximum of three meters in width and 2.2 meters in height.

GENERAL CHARACTERISTICS

– Use: Outdoors that need perimeter partitions that can be easily removed.
– Operation: By lowering the upper glass, the horizontal counterweight is raised.
– Features: Safety glass, eight to ten mm thick, discreet aluminum profiles.
– Basic dimensions: Aluminium columns 40mm wide and 80mm deep. Horizontal counterweight 120mm wide. Planter dimensions: 33cm deep, 55cm high from the ground.

ADVANTAGES

– Detachability: The sliding glass windbreak can be moved with ease as it has wheels.
– Minimal aesthetics: Modern design that minimizes the use of metal, leaving more glass surface.
